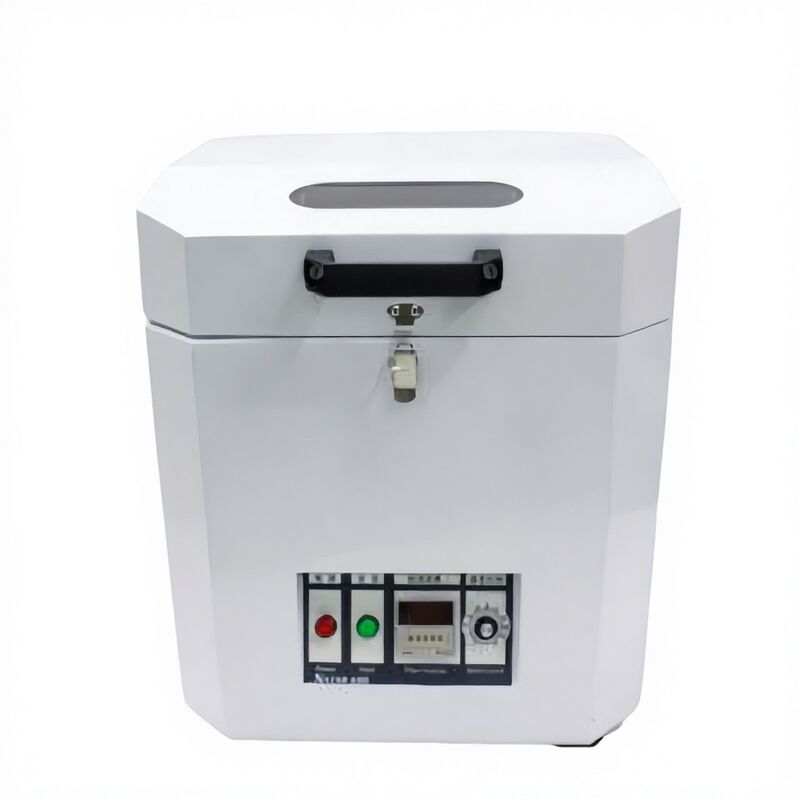

SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine

تفاصيل المنتج

مكان المنشأ: جيانغسو، الصين

اسم العلامة التجارية: YUSH

شروط الدفع والشحن

الحد الأدنى لكمية: 1 مجموعة

الأسعار: $2,500-3,000 / set

احصل على أفضل سعر
إبراز:

fully automatic SMT tin cream mixer,PCB depaneling tin paste mixer,SMT tin paste mixer machine

,

PCB depaneling tin paste mixer

,

SMT tin paste mixer machine

وزن:
40 كجم
جهد التشغيل:
تيار متردد 220 فولت (60 هرتز) 40 وات
السرعة الأولية:
1400 دورة في الدقيقة
السرعة الثانوية:
400 دورة في الدقيقة
حجم الآلة:
410 * 410 * 490 ملم (العرض)
الوزن الصافي:
40 كجم
الوزن الإجمالي:
45 كجم
طول الآلة:
410mm
نموذج:
J40
ضبط الوقت:
0.1-9.9 دقيقة، 0.1 دقيقة في كل مرة
المكونات الأساسية:
المحرك، المضخة
استهلاك الطاقة:
40 واط
تكرار:
60 هرتز
زاوية الدوران:
45 درجة
الوزن التوازن:
500 جرام
وزن:
40 كجم
جهد التشغيل:
تيار متردد 220 فولت (60 هرتز) 40 وات
السرعة الأولية:
1400 دورة في الدقيقة
السرعة الثانوية:
400 دورة في الدقيقة
حجم الآلة:
410 * 410 * 490 ملم (العرض)
الوزن الصافي:
40 كجم
الوزن الإجمالي:
45 كجم
طول الآلة:
410mm
نموذج:
J40
ضبط الوقت:
0.1-9.9 دقيقة، 0.1 دقيقة في كل مرة
المكونات الأساسية:
المحرك، المضخة
استهلاك الطاقة:
40 واط
تكرار:
60 هرتز
زاوية الدوران:
45 درجة
الوزن التوازن:
500 جرام
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine
Fully Automatic SMT Tin Cream Mixer
This high-quality tin paste mixer machine ensures precise mixing of solder paste for optimal SMT production results.
Usage Instructions
For optimal performance: When stirring two cans simultaneously, ensure weights are roughly equal (difference ≤50g). For single can operation, use the provided 500g balance weight or equivalent counterweight. Press the power switch to stop operation. The machine automatically stops when the cover is opened during operation.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 0
Product Maintenance
Regular maintenance extends the service life of this precision mechanical equipment:
  • Keep the machine clean as it uses fully enclosed bearings
  • Replace the rotation device belt promptly when damaged (non-durable component)
Safety Precautions
  • Never open the machine cover or leave it unlocked during operation
  • Wait for complete machine stop before opening the upper cover
  • Place machine on stable, solid surface as slight vibration occurs during operation
  • Immediately power off and inspect if excessive vibration occurs
Technical Specifications
Operating Voltage AC220V (60 HZ) 40W
Operating Speed Primary: 1400 RPM, Secondary: 400 RPM
Machine Dimensions 410 × 410 × 490mm (W×D×H)
Net/Gross Weight 40kg / 45kg
Time Setting 0.1-9.9 minutes (0.1 min increments), 10-30 minutes (1.0 min increments)
Key Features
Utilizing rotary centrifugal force with 45-degree axis rotation, this mixer creates a whirlwind funnel mixing action that softens paste, eliminates clumping, and achieves optimal viscosity for excellent printing and welding performance.
  • No need to remove tin cream before mixing
  • Adjustable mixing time and speed with special control circuit
  • 45-degree placement prevents paste attachment to tank cover
  • Smooth operation with low noise, natural temperature return, and bubble removal
  • Convenient, safe operation without opening tin paste tank
  • Universal clamp fits various tin paste tank packaging
  • No moisture issues or tin powder shape damage
  • 220V power supply with safety protection devices
Operation Procedure
Step 1:
Release latch, open machine cover, and confirm no foreign objects inside.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 1
Step 2:
Remove tin paste and 500g balance weight.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 2
Step 3:
Place tin paste and balance weight in tank (cancel balance weight when mixing 2 bottles).
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 3
Step 4:
Manually rotate tin paste jar to confirm no collision, close cover, and power on.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 4
Step 5:
Set mixing time (recommended: 5 minutes). Time controller: H=hours, M=minutes, S=seconds.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 5
Step 6:
Press start key (indicator light on), machine operates at high speed until automatic stop.
SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine 6
Step 7:
After completion, press power switch to turn off power supply.
