المنزل > المنتجات > pcb depaneling آلة > V Groove Separator Machine PCB Depanelizer Tool -YSV-1A

V Groove Separator Machine PCB Depanelizer Tool -YSV-1A

تفاصيل المنتج

مكان المنشأ: جيانغسو، الصين

اسم العلامة التجارية: YUSH

شروط الدفع والشحن

الحد الأدنى لكمية: 1 مجموعة

الأسعار: $10,000 / set

احصل على أفضل سعر
إبراز:

V groove PCB separator machine,YSV-1A depaneling tool,PCB depanelizer with warranty

,

YSV-1A depaneling tool

,

PCB depanelizer with warranty

وزن:
55 كجم
قوة:
10 كيلوواط
الجهد االكهربى:
110/220 v
تقليل السرعة:
100/200/300/500 مم / ثانية
عدد البولنديين:
1
يكتب:
هواء
مقاس:
780 × 460 × 560 ملم
سماكة:
0.6-3.5mm
نموذج:
YSV-1A
طول:
460 أو 600 ملم
سرعة:
100/200/300/500 مم / ثانية
مزود الطاقة:
110/220 فولت
حجم الآلة:
770*510*450 مللي متر
المكونات الأساسية:
شفرة
التخليص قابل للتعديل:
نعم
وزن:
55 كجم
قوة:
10 كيلوواط
الجهد االكهربى:
110/220 v
تقليل السرعة:
100/200/300/500 مم / ثانية
عدد البولنديين:
1
يكتب:
هواء
مقاس:
780 × 460 × 560 ملم
سماكة:
0.6-3.5mm
نموذج:
YSV-1A
طول:
460 أو 600 ملم
سرعة:
100/200/300/500 مم / ثانية
مزود الطاقة:
110/220 فولت
حجم الآلة:
770*510*450 مللي متر
المكونات الأساسية:
شفرة
التخليص قابل للتعديل:
نعم

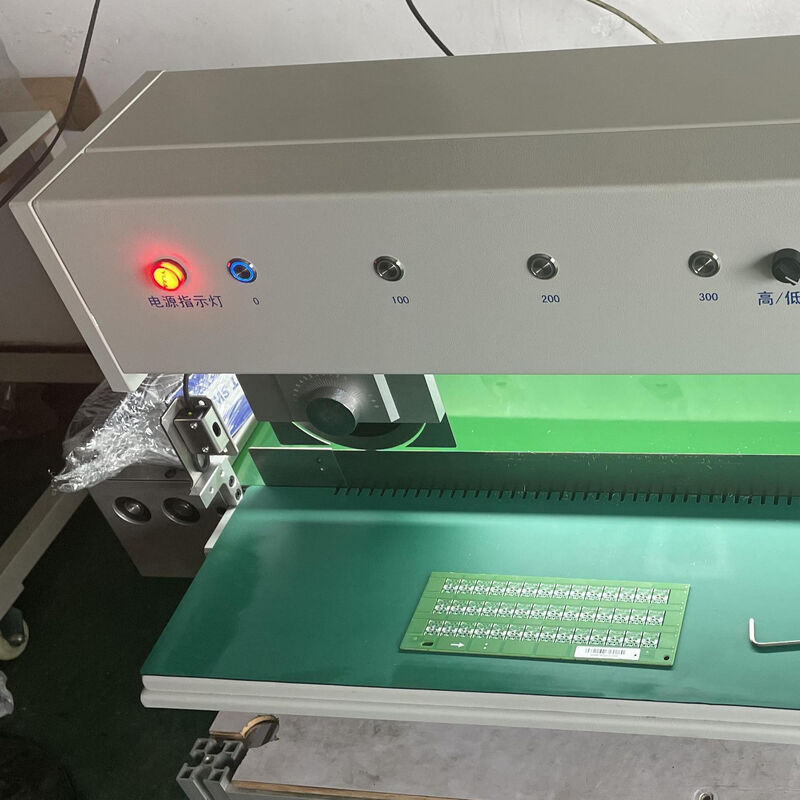

V Groove Separator Machine PCB Depanelizer Tool -YSV-1A
V-Groove Separator Machine PCB Depanelizer Tool - YSV-1A
Product Specifications
ModelYSV-1A
Length (mm)460 or 600
Speed (mm/s)100/200/300/500
Thickness (mm)0.6-3.5
Power Supply (V)110/220
Size (mm)770×510×450
Weight55kg
V  Groove Separator  Machine PCB Depanelizer Tool -YSV-1A 0 V  Groove Separator  Machine PCB Depanelizer Tool -YSV-1A 1
Key Features
  • Separate pre-scored PCB assembly without stress on either PCB or components
  • One-touch programming of cut length with digital display
  • Separating speed adjusted by rotary knob
  • Handles intermittent scoring or cut-outs
  • Precisely cuts boards with projected components
  • Large stainless steel platform on both sides of cutting blade prevents board wobble
  • Table height and angle are adjustable
  • Optional PCB conveyor belt to remove finished boards
  • Adjustable clearance between circular and linear blades to fit different groove depths
  • Compensates for blade wear over time
V  Groove Separator  Machine PCB Depanelizer Tool -YSV-1A 2 V  Groove Separator  Machine PCB Depanelizer Tool -YSV-1A 3
Competitive Advantages
  • YSV-1A printed circuit board depaneling original manufacturers
  • 24-hour technical support services
  • Rapid complaint resolution - 30-minute response time to customers
  • Depanel experts providing professional PCB solutions
