تفاصيل المنتج
مكان المنشأ: قوانغدونغ
اسم العلامة التجارية: YUSH
رقم الموديل: YSL-9
شروط الدفع والشحن
الحد الأدنى لكمية: 1
الأسعار: USD 20000
وقت التسليم: 20 يوم العمل
شروط الدفع: L/C ، D/A ، D/P ، T/T ، Western Union
القدرة على العرض: 1000
نموذج: |
YSL-9 |
وزن: |
1100 كجم |
حجم الآلة: |
1220x1560x1500 |
وقت التغيير: |
5 دقائق |
نموذج: |
YSL-9 |
وزن: |
1100 كجم |
حجم الآلة: |
1220x1560x1500 |
وقت التغيير: |
5 دقائق |

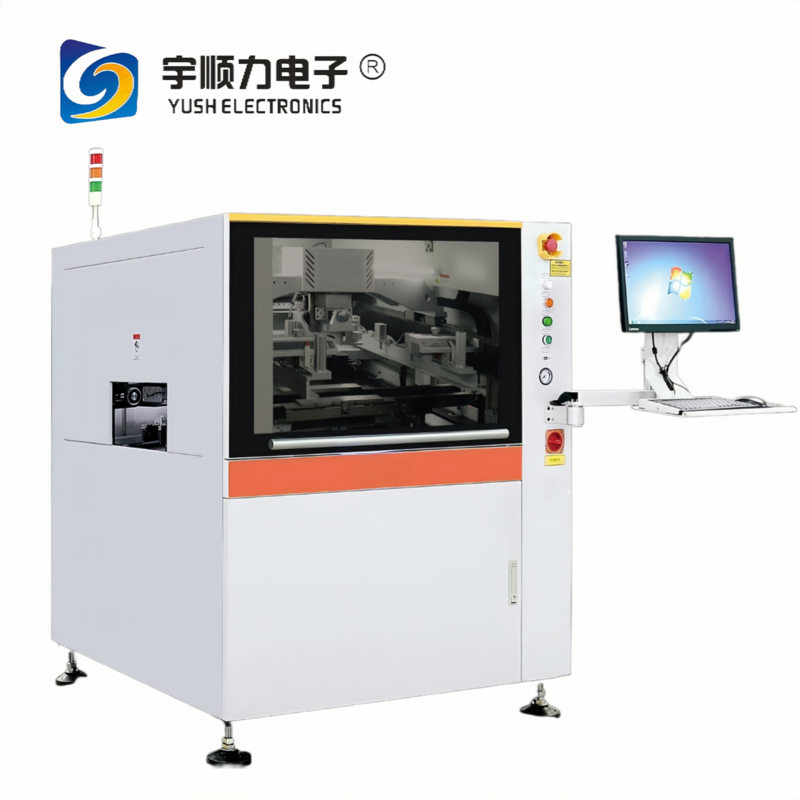

YSL-9 automatic vision printing machine is mainly used in mini LED, semiconductor printing, smart phone fields, and smart wear applications. It can perfectly meet the fine pitch of 03015, 0.15Pich, and high precision requirements.
| Min Size | 420x370MM |
| Max Size | 737X737MM |
| Thickness | 20-40MM |
| Stencil Position Mode | Automatic Y-axis positioning |
| PCB Min Size | 50x50mm |
| PCB Max Size | 510x340mm |
| PCB Thickness | 0.4-6mm |
| PCB Warpage | <1% |
| Image Capture Mechanical Range | 530x340mm |
| PCB Board Edge Clearance | 2.5mm |
| Board Height | 25mm |
| Transport Height | 900±40mm |
| Transport Speed | Max 1500mm/S Programmable |
| Transport Mode | One section transportation track |
| Maximum PCB Board Weight | 5kg |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right |
| Printing Speed | 10-200mm/sec |
| Printing Pressure | 0.5-25kg |
| Printing Mode | Single or double squeegee printing |
| Release Distance | 0-20mm |
| Snap-Mode | Three stage demolding |
| Squeegee Angle | 60°/55°/45° |
| Squeegee Type | Rubber squeegee/Steel squeegee (Angle 45°/55°/60°) |
| Release Speed | 0-20mm/sec |
| Repeat Position Accuracy | ±0.009mm@6o, CPK≥2.0 |
| Printing Accuracy | ±0.017mm@6 o, CPK≥2.0 |
| Cycle Time (Excluding Cleaning) | <7s (Exclude Printing & Cleaning) |
| Cycle Time (Including Cleaning) | 13s |
| Changeover Time | 5Min |
| Cleaning Stroke | Automatic generation |
| Cleaning Position | Post cleaning (BTB pre cleaning) |
| Cleaning Speed | 10~200mm/sec |
| Cleaning Fluid Consumption | Auto & Manually adjustable |
| Cleaning Paper Consumption | Auto & Manually adjustable |
| CCD FOV | 10*8mm |
| Camera Type | 130 megapixel digital camera |
| Camera System | Lock up/down option structure |
| Camera Cycle Time | 150ms |
| Mark size | 0.1~6mm |
| Stay Away Number | Max: 1pcs |
| Mark Number | Max: 4pcs |
| 2D Detection | Detect low tin/missing print/continuous tin |
| Machine Weight | 1100kg |
| Main Power Supply | AC:220±10v;50/60Hz,3KW,with stable current and power supply |
| Ground Wire | The equipment needs to be grounded separately by pulling a grounding wire |
| Plug Type | English SS145(13A) |
| Main Air Supply Source | 4.0-6qf/cm? industrial gas source, with a straight airway diameter of 8mm |
| Working Temperature | -20℃-45℃ |
| Working Environment Humidity | 30%~60% |
| Electrostatic Protection | ESD grounding electrostatic protection |
