تفاصيل المنتج
مكان المنشأ: الصين ، قوانغدونغ
اسم العلامة التجارية: YUSH
إصدار الشهادات: CE
شروط الدفع والشحن
الحد الأدنى لكمية: 1
الأسعار: USD5800
تفاصيل التغليف: حالة خشبية
شروط الدفع: L/C ، D/A ، D/P ، T/T

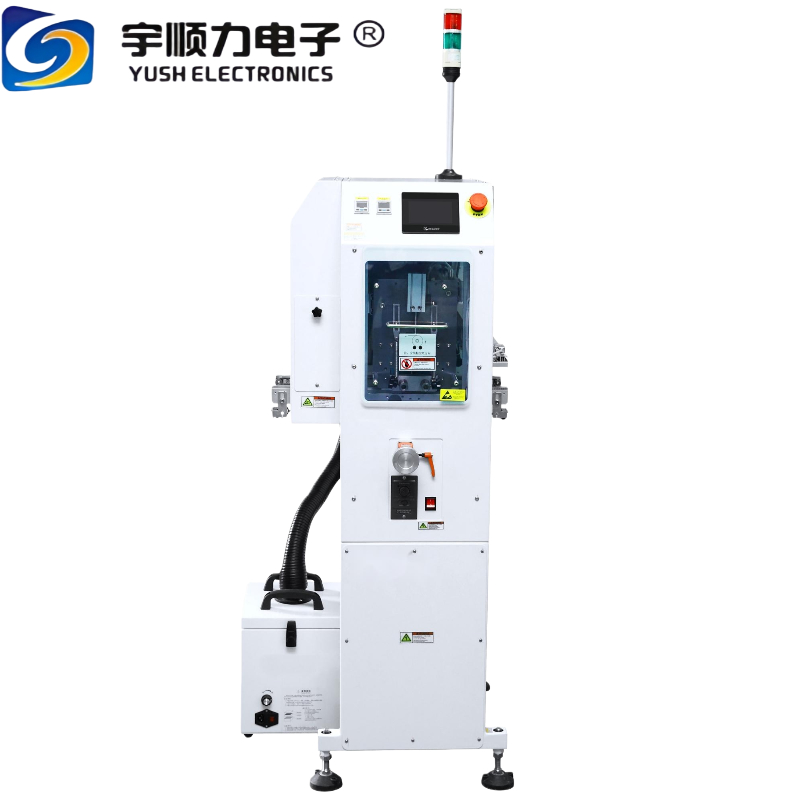

The Automatic Touch Screen Control PCB Cleaning Machine is designed to remove foreign objects from PCB surfaces while eliminating static electricity.
This unit is used to remove the foreign objects from the PCB surface. It can also eliminate the static electricity on of PCB.
| Description | This unit is used to remove the foreign objects from the PCB surface. It can also eliminate the static electricity on of PCB |
|---|---|
| Belt Type | Antistatic Flat Belt of 8mm width |
| Cycle Time | Approx. 8 seconds |
| PCB Thickness | 0.6-4mm |
| Conveyor Speed | 0.5-20m/min or specify |
| Power Source | AC 220V, 50/60Hz, 1 phase |
| Power Consumption | 150W Max |
| Air Pressure & Consume | 4-6 bar, 10 l/min Max. |
| Specification | Units in mm |
|---|---|
| type | Single Side |
| Machine Dimensions(LxWxH) | 650x976x1380 |
| Effective PCB Size (LxW) | 80x80 - 530x460 |
| Weight (Kg) | 200 |
