تفاصيل المنتج
مكان المنشأ: قوانغدونغ
اسم العلامة التجارية: YUSH
رقم الموديل: YSVC-650
شروط الدفع والشحن
الحد الأدنى لكمية: 1
الأسعار: USD30000
وقت التسليم: 20 يوم العمل
شروط الدفع: L/C ، D/A ، D/P ، T/T ، Western Union
القدرة على العرض: 1000
وزن: |
800 كجم |
منطقة التوجيه: |
300 × 350 مم |
يكتب: |
خارج الخط |
سرعة القطع للمحور X، Y: |
0-100 ملم/ثانية |
وزن: |
800 كجم |
منطقة التوجيه: |
300 × 350 مم |
يكتب: |
خارج الخط |
سرعة القطع للمحور X، Y: |
0-100 ملم/ثانية |

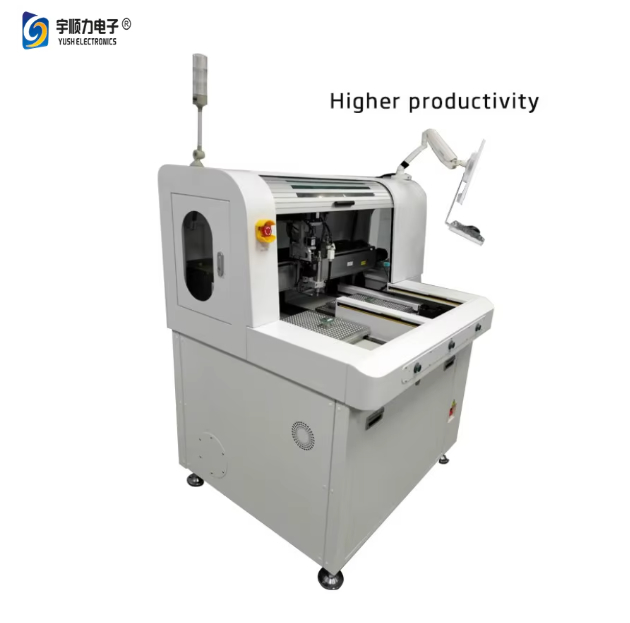

YSVC-650 series is a visual alignment automatic PCB router machine, equipped with high-speed CCD vision correction device, especially for precision and high-capacity PCB boards routing operations, suitable for mobile phones, GPS, PDA and MODULE and other small The PCB is divided into boards. Using NAKANISHI Japanese precision spindle (Also can be selected according to customer requirements Germany KAVO spindle etc), Without cutting stress, Board edge after cut is smooth, with high precision.
High-speed router bit precisely cuts densely populated PCBs without stressing the boards. Cutting paths can be set as close as 0.5mm to a component.
CCD Camera captures an image of the PCB and easy programming of cutting paths is achieved by simple Point-and-Click Windows-based operation on the computer screen. Time is reduced and programming is simplified by this software.
CCD Camera reads fiducial marks on a PCB and compensates for variance on relative position of cutting paths.
Automatic 5-stage depth adjustment extends bit life and reduces time and cost of replacement.
